Asetek Invicta T.H.O.R.P. II S-Series Pedals

Asetek Invicta T.H.O.R.P. II S-Series Pedals

$1,529.00

Latest and greatest in Aseteks pedal lineup
Ultimate in adjustability
Integrated heel rest
Customisable RGB LED
Capable of handling up to 200kgs of force with bursts of 700kgs!

Product variants

Hurry, only 6 items left in stock!

Need help?

Pairs well with

Brands You Can Trust

Manufacturer Warranty

Fast and Affordable Shipping

30 Day Returns

Asetek Invicta T.H.O.R.P. II S-Series Pedals

Experience more than just a simulation with the Invicta S-Series T.H.O.R.P. II.

Equipped with the groundbreaking T.H.O.R.P. II hydraulic brake system, the S Series Pedals deliver an authentic race car braking feel while offering a wider range of adjustability that provides the possibility for up to 40% longer travel as well as reaching the 2nd second stage with less force applied.

The hydraulic brake system also enables immersive trail braking, providing precise control and seamless modulation for an authentic braking sensation.

And by accurately simulating real brake pressure and fluid dynamics, it delivers a consistent braking feel, helping you build and refine muscle memory.

What sets the S-Series apart is the ability to adjust the distance between the throttle and brake by up to 400 mm, allowing for a fully customizable pedal setup.

All adjustable parts are colored orange for quick and tool-free customization.

Decide The Distance

The Invicta™ S-Series T.H.O.R.P. II give you full control over your setup, allowing you to adjust the distance between the throttle and brake by up to 400 mm.

This flexibility lets you customize your rig to match your exact preferences – even enabling inverted mounting – all with a single cable connection.

If you demand complete freedom without compromising on quality, these pedals are the ultimate choice.

Product details

General specifications:

Exquisite, radical, and minimalistic industrial Danish design.
Adjustable pedal stops
Adjustable travel settings
All black anodized aluminum pedal base, pedal arms, and pedal plates, with CNC machined contrast cut surfaces.
Pedal base with integrated heel rest and RGB LED that can be adjusted, dimmed, or turned completely off in the RaceHub software
Adjustable pedal plates that can be moved along the x- and y-axis
Calibrations made in RaceHub will automatically be saved in our EPROM (Erasable Programmable Read-Only Memory). This results in calibration (pressures, deadzones and more) will remain saved for every simulator/game (You do need to set 0 and 100% value in the game).
Only one USB connection to the PC from the pedal base regardless of 2 or 3 pedal utilization
Each pedal can be calibrated through the intuitive and easy to use RaceHub software
Pedal upper and lower dead zones can be set through the RaceHub software
All adjustable mechanical features are by default colored orange
Inhouse developed electronics with 16-bit resolution and automotive-grade pressure sensor
Easy to add clutch pedal to the Throttle & Brake combo
Designed and tested to 1,000,000 activations, which far exceeds any race car specification

Brake System Specifications:

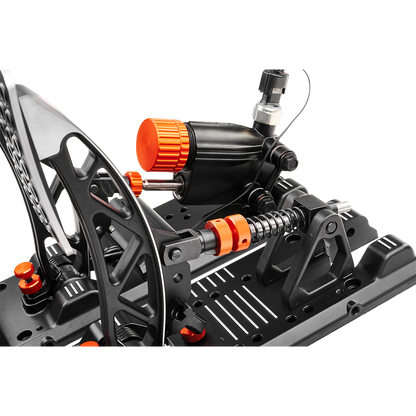

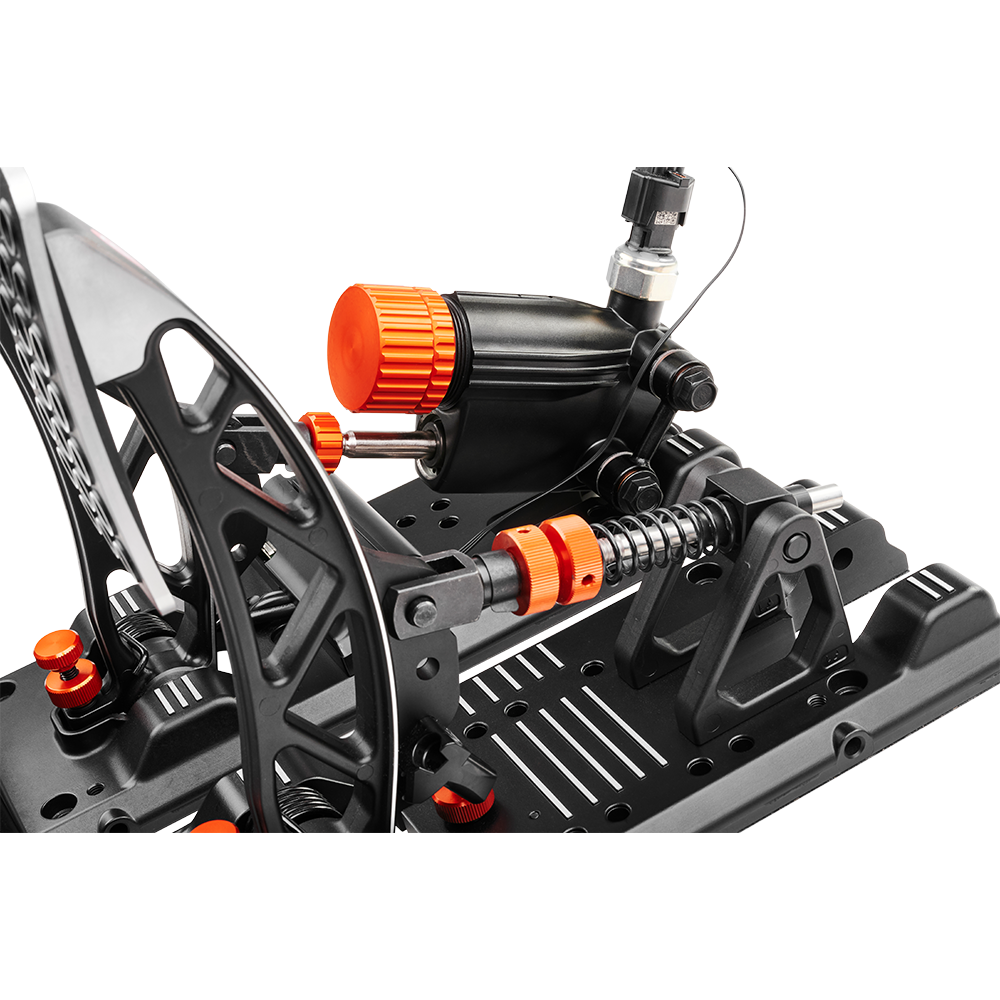

The T.H.O.R.P. II (Twin Hydraulic Opposing Rapid Pistons) hydraulic brake cylinder gives the you the ultimate experience of driving a real race car
Die-cast aluminum zero play pedal arm with integrated long durability ball bearings and bronze bushing at the clevis rotation point.
Automotive-grade pressure sensor
The inhouse designed brake cylinder features sleek CNC machined details, adding to the exquisite overall look.
Five interchangeable elastomers for adjustment of hardness combined with an integrated physical stop and an expansion chamber to mimic perfect race car feel as well as not overloading the elastomer
Manually adjustable initial touch hardness to mimic perfect brake pad to brake disc distance
Pressure sensor measures 0-100 bar – tested to withstand a repetitive pressure of 100 bar (seal burst pressure 130 bar)
100 bar of pressure equals 180 kg of force on the face of the pedal plate
Hydraulic Brake Cylinder made from forged aluminum
Pedal arm designed for 200 kg of force and a burst pressure of up to 700 kg.

Throttle specifications:

Die-cast aluminum zero play pedal arm with integrated long durability ball bearings and bronze bushing at the clevis rotation point.
16-bit magnetic wireless hall TPS (throttle position sensor) with no mechanical wear and zero maintenance
Custom throttle curves can be adjusted and 100% customized in the RaceHub Software to mimic real race car butterfly opening. For example a linear curve in dry conditions and a progressive in wet conditions
Adjustable pedal hardness, travel and stop
Interchangeable spring for bigger step in pedal hardness
Pedal arm is designed for 200 kg of force and a burst pressure of up to 700 kg

Dimensions:

Depth, width, and height: 457 mm x 212 mm x 256 mm
Weight: 3 kg

Warranty Information
Safety Information
Manual QR Flyer
RaceHub Flyer
Invicta Sticker Sheet
Performance Grease
T.H.O.R.P. II Long Travel Kit
Cable Zip Tie
Medium Throttle Spring
USB-C to USB-A cable (Pedals to PC)
USB-C to USB-A cable (Pedals to wheelbase)
3 mm Allen Key
5 mm Allen Key
M6 Hex nut
M6 slot nut for alu profiles
Washer
M6x20 bolt
Throttle/Clutch extension cable 300 mm
Throttle/Clutch extension cable 400 mm
Light Green Elastomer
Green Elastomer
Yellow Elastomer
Red Elastomer

2 year factory warranty for personal use, 1 year for commercial
