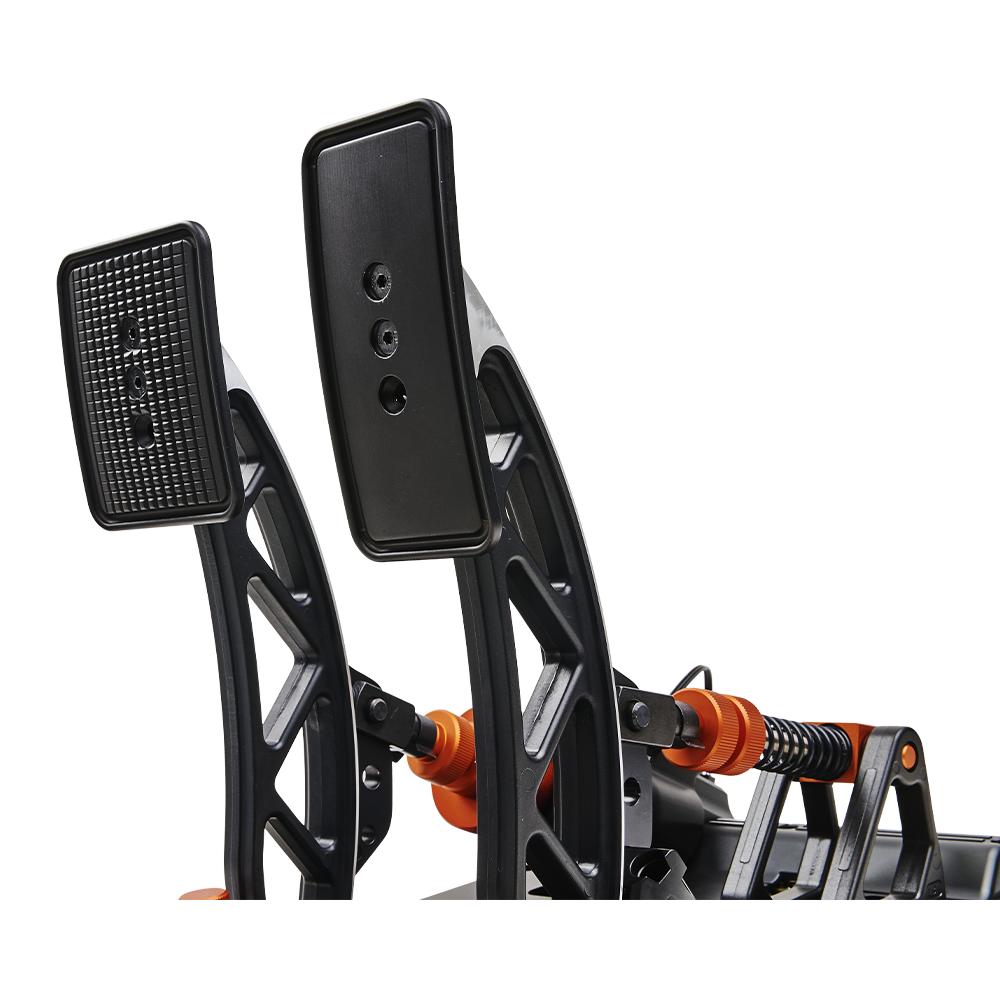

Asetek Forte Pedals

$829.00

Hard brake like a real race car
Two stage system, soft and Hard
Easy to install and configure
Adjustable and upgradable
Integrated heel rest with Programmable RGB LED

Product variants

Hurry, only 5 items left in stock!

Need help?

Pairs well with

Brands You Can Trust

Manufacturer Warranty

Fast and Affordable Shipping

30 Day Returns

Asetek Forte Brake & Throttle Pedals

Immerse yourself with the real-life racing inspired Forte Sim Racing Pedals.

By utilizing a M.L.C.P.C (Mechanical Load Cell Powered Cylinder) System, these sim racing pedals pave the way for authentic racing by simulating the sensation of a real race car without going full hydraulic.

The Forte Sim Racing Pedals have been thoroughly tested by both racers and sim enthusiasts, and with that feedback in mind, the pedals are engineered and designed to replicate the real deal and give you that competetive edge.

Inspired By Real-Life Racing

The design of the Forte Pedals is crafted with user experience in mind, featuring color-coded adjustable elements for a quick start and ensuring intuitive and mostly tool-less usage.

The sim racing pedals are highly adjustable, allowing you to channel your inner racer and easily customize the travel and hardness settings to your exact preferences.

Furthermore, while the Forte Pedals are not hydraulic, they still offer the hydraulic sensation of a fully depressed brake pedal because of the M.L.C.P.C. System. This allows you to pressure modulate and trail brake – thanks to the 2-stage system inspired by the Invicta Pedals.

The Benefits of a Hard Brake Pedal

Having a hard brake pedal will allow your muscle memory to be trained to perfection. Muscle memory is the subconscious telling your muscles just the right amount of pressure, leaving your conscious mind to take care of more important things at that moment – like watching traffic or hitting apex.

Your muscle memory system is not wired to remember a position. Try to lift your hand with your eyes closed and reach the same spot within 0,5 mm 10 times in a row, and you will get the point.

On the flip side, your muscle memory can memorize a pressure extremely accurately, meaning going around a track, your muscle memory can make you brake the same way again and again. This cannot be achieved with a soft pedal – especially when trail braking.

Learn more about why you want a hard brake pedal.

Brake Later. Get Faster.

Furthermore, a hard brake pedal will allow you to brake later. Imagine having a brake pedal with 50 mm (common for many sim racers) of travel versus a brake pedal with almost zero travel.

You are going 300 km/h down a straight. With the long travel brake, it will physically take you perhaps 1/10 of a second more to reach full braking power. On the stiff brake pedal, you will reach maximum braking power instantly.

If you have three hard braking zones on a track, you will gain 3/10 of a second each lap by using a hard brake with minimal travel.

Product details

Tech Specs

Exquisite, radical, and minimalistic industrial Danish design (Registered Community Design No. 009148265-0001/0002/0003)
Adjustable pedal stops
Adjustable travel settings
All-black anodized aluminum pedal base and pedal arms with CNC machined contrast cut
All-black anodized aluminum smooth and sock-friendly pedal plates allowing hours and hours of comfortable use. The pedal plates can be adjusted vertically.
Pedal base with integrated heel rest and RGB LED that can be adjusted, dimmed, or turned completely off in the RaceHub software
Calibrations made in RaceHub will automatically be saved in our EPROM (Erasable Programmable Read-Only Memory). This results in calibration (pressures, deadzones and more) will remain saved for every simulator/game (You do need to set 0 and 100% value in the game)
Only one USB connection to the PC from the pedal base regardless of 2 or 3 pedal utilization
All adjustable mechanical features are by default colored orange
Inhouse-developed electronics with 16-bit resolution
Easy to add a clutch pedal to the Forte Throttle & Brake combo
Designed and tested to +1,000,000 activations, which far exceeds any race car specification

Dimensions

Depth, width, and height: 457 mm x 212 mm x 256 mm
Weight: 3 kg

Brake System

The M.L.C.P.C. (Mechanical Load Cell Powered Cylinder) patent-pending brake cylinder gives you the experience of driving a real race car
Die-cast aluminum zero play pedal arm with integrated long durability ball bearings and bronze bushing at the clevis rotation point
Load cell will sense up to 180 kg of force on the face of the pedal plate with hardest elastomer 4000N depressed 12mm / until 2nd stage is engaged
Geared ratio between pedal pressure and load cell deflection ensuring constant and full resolution to any user independent of elastomer hardness. 4000 points in only 12mm inside the M.L.C.P.C cylinder from released pedal to 2nd stage 1/5th of a human hair.
Two-stage system that mimics the hard- and soft stages of a real race car
Two interchangeable elastomers for adjustment of hardness combined with an integrated physical stop and expansion chamber to mimic race car feel as well as not overloading the elastomers
Manually adjustable initial touch hardness to mimic perfect brake pad to brake disc distance
Pedal arm designed for 200 kg of force and a burst pressure of up to 700 kg!

Throttle System

Die-cast aluminum zero play pedal arm with integrated long durability ball bearings and bronze bushing at the clevis rotation point.
16-bit magnetic wireless hall TPS (Throttle Position Sensor) with no mechanical wear and zero maintenance
Custom throttle curves can be adjusted and 100% customized in the RaceHub software to mimic a real race car butterfly opening. For example, a linear curve in dry conditions and a progressive in wet conditions
Adjustable pedal hardness
Adjustable pedal travel
Adjustable pedal stop
Interchangeable spring for a bigger step in pedal hardness
Pedal arm designed for 200 kg of force and a burst pressure of up to 700 kg!

Forte® Throttle
Forte® M.L.C.P.C. Brake
USB Type-A to USB Type-C cable 1.5m
USB Type-C to USB Type-C cable 1.5m
M6x5 Set screw (x2)
M6x20 bolt (x8)
M6 Slot nut (x8)
Washer (x8)
M6 Hex nut (x8)
Allen key, 3mm
Allen key, 5mm
Elastomer, Soft
Elastomer, Hard (pre-installed)
Throttle Spring, Medium (pre-installed)
Throttle Spring, Soft

2 year limited and 1 year commercial factory warranty
